Description

Catalog Number	Size (mm)
19428/01	50
19428/02	60
19428/03	75

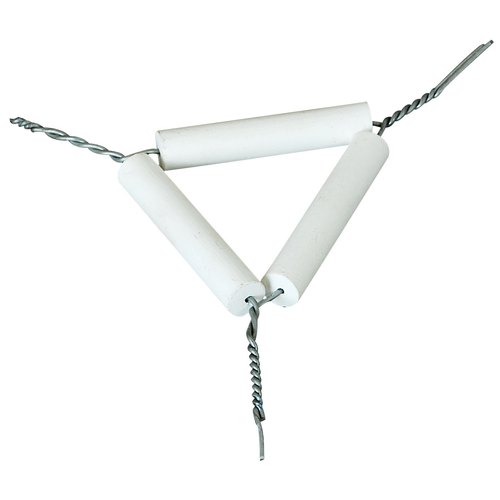

MEDILAB Clay Pipe Triangles are high-temperature porcelain-tube supports used for securely holding crucibles during direct heating over a Bunsen burner or other laboratory heat sources. Designed in an equilateral triangular form with twisted wire supports, these triangles provide a stable, heat-resistant platform essential for ignition, ashing, and high-temperature analytical work. Their durability and reliability make them indispensable in laboratories that require precise and safe heating operations.

Key Features

• High-quality porcelain tubing for exceptional heat resistance
• Robust metal wire frame (thick or thin wire options) for secure support
• Unglazed pipes for improved friction and grip during heating
• Stable equilateral triangular design ensures uniform crucible support
• Withstands repeated exposure to direct flame without cracking
• Lightweight, easy to handle, and suitable for continuous use
• Ideal for educational, research, QC/QA, and industrial labs

Material Specifications

• Material: Premium laboratory-grade porcelain tubes with a metal wire frame
• Thermal Properties:
   Withstands high temperatures associated with Bunsen flame heating
   Excellent thermal shock resistance
• Chemical Properties: Non-reactive, corrosion-resistant, and chemically inert
• Mechanical Properties: Rigid porcelain with strong metal support
• Manufacturing Standards: Produced under ISO-compliant laboratory-ware quality systems

 Technical Specifications

• Available Sizes: Common laboratory sizes to support small, medium, and large crucibles
• Design:
  Equilateral triangular frame with hollow porcelain tubes
  Pipes unglazed for controlled grip
• Dimensional Accuracy: Consistent triangle geometry for stable heating setups
• Calibration: Not applicable
• Accessories Included: Supplied as a complete wire-and-porcelain support unit

 Handling & Precautions

• Use on a stable tripod for safe crucible heating
• Avoid sudden cooling after high-temperature use to prevent thermal shock
• Clean gently after use; avoid abrasive scrubbing to preserve structural integrity
• Do not drop or strike against hard surfaces, as porcelain may chip
• Do not expose to temperatures beyond standard laboratory burner limits
• Store in a dry, clean environment to maintain lifespan

 Applications

• Direct heating of crucibles over Bunsen burners
• Ignition and ashing processes in chemical analysis
• Ideal for gravimetric analysis and thermal decomposition studies
• Widely used in academic laboratories for teaching high-temperature techniques
• Essential in chemical, pharmaceutical, metallurgical, and materials science laboratories
• Suitable for QC/QA labs conducting routine high-temperature testing
